We provide a step-by-step protocol for whole-mount immunofluorescence staining of the sinoatrial node (SAN) and atrioventricular node (AVN) in murine hearts.
The electrical signal physiologically generated by pacemaker cells in the sinoatrial node (SAN) is conducted through the conduction system, which includes the atrioventricular node (AVN), to allow excitation and contraction of the whole heart. Any dysfunction of either SAN or AVN results in arrhythmias, indicating their fundamental role in electrophysiology and arrhythmogenesis. Mouse models are widely used in arrhythmia research, but the specific investigation of SAN and AVN remains challenging.
The SAN is located at the junction of the crista terminalis with the superior vena cava and AVN is located at the apex of the triangle of Koch, formed by the orifice of the coronary sinus, the tricuspid annulus, and the tendon of Todaro. However, due to the small size, visualization by conventional histology remains challenging and it does not allow the study of SAN and AVN within their 3D environment.
Here we describe a whole-mount immunofluorescence approach that allows the local visualization of labelled mouse SAN and AVN. Whole-mount immunofluorescence staining is intended for smaller sections of tissue without the need for manual sectioning. To this purpose, the mouse heart is dissected, with unwanted tissue removed, followed by fixation, permeabilization and blocking. Cells of the conduction system within SAN and AVN are then stained with an anti-HCN4 antibody. Confocal laser scanning microscopy and image processing allow differentiation between nodal cells and working cardiomyocytes, and to clearly localize SAN and AVN. Furthermore, additional antibodies can be combined to label other cell types as well, such as nerve fibers.
Compared to conventional immunohistology, whole-mount immunofluorescence staining preserves the anatomical integrity of the cardiac conduction system, thus allowing the investigation of AVN; especially so into their anatomy and interactions with the surrounding working myocardium and non-myocyte cells.
Arrhythmias are common diseases affecting millions of people, and are the cause of significant morbidity and mortality worldwide. Despite enormous advances in treatment and prevention, such as the development of cardiac pacemakers, treatment of arrhythmias remains challenging, primarily due to the very limited knowledge regarding underlying disease mechanisms1,2,3. A better understanding of both the normal electrophysiology and the pathophysiology of arrhythmias may help to develop novel, innovative and causal treatment strategies in the future. Additionally, to comprehensively study arrhythmogenesis, it is important to localize and visualize the specific cardiac conduction system in animal models such as the mouse, as mice are widely used in electrophysiology research.
The major parts of the cardiac conduction system are the sinoatrial node (SAN), where the electrical impulse is generated in specialized pacemaker cells, and the atrioventricular node (AVN), which is the only electrical connection between the atria and the ventricles4. Whenever the electrophysiological properties of SAN and AVN are altered, arrhythmias such as sick sinus syndrome or atrioventricular block can occur which may lead to hemodynamic deterioration, syncope and even death, and thus underline the essential role of both SAN and AVN in electrophysiology and arrhythmogenesis5.
Comprehensive studies on SAN or AVN require a precise localization and visualization of both structures, ideally within their physiologic environment. However, due to their small size and location within the working myocardium, without establishing a clear macroscopically visible structure, studying the anatomy and electrophysiology of SAN and AVN is challenging. Anatomical landmarks can be used to roughly identify the region that contains SAN and AVN6,7,8. In brief, SAN is located in the inter-caval region of the right atrium adjacent to the muscular crista terminalis (CT), AVN is located within the triangle of Koch established by the tricuspid valve, the ostium of the coronary sinus and the tendon of Todaro. Thus far, these anatomical landmarks were mainly used to localize, remove and then study SAN and AVN as individual structures (e.g., by conventional histology). To better understand the complex electrophysiology of SAN and AVN (e.g., regulatory effects of adjacent cells of the working myocardium), however, studying the conduction systems within the physiologic 3D environment is necessary.
Whole-mount immunofluorescence staining is a method that is used to study anatomical structures in situ while preserving the integrity of the surrounding tissue9. Taking advantage of confocal microscopy and image analysis software, SAN and AVN can be visualized with fluorescently labeled antibodies targeting ion channels specifically expressed in these regions.
This following protocol explains the necessary steps to perform a well-established whole-mount staining method for SAN and AVN microscope localization and visualization. Specifically, this protocol describes how (1) to localize SAN and AVN by anatomical landmarks to prepare these samples for staining and microscopy analysis (2) to perform whole-mount immunofluorescence staining of the reference markers HCN4 and Cx43 (3) to prepare SAN and AVN samples for confocal microscopy (4) to perform confocal imaging of SAN and AVN. We also describe how this protocol can be modified to include additional staining of surrounding working myocardium or non-myocyte cells such as autonomous nerve fibers which allows a thorough investigation of the cardiac conduction system within the heart.
Animal care and all experimental procedures were conducted in accordance with the guidelines of the Animal Care and Ethics committee of the University of Munich, and all the procedures undertaken on mice were approved by the Government of Bavaria, Munich, Germany (ROB-55.2-2532.Vet_02-16-106, ROB-55.2-2532.Vet_02-19-86). C57BL6/J mice were purchased from Jackson Laboratory.
NOTE: Figure 1 shows the instruments needed for the experiment. Figure 2 shows an illustration of the gross cardiac anatomy. Figure 3 shows the location of SAN and AVN in an adult mouse heart. Figure 4 shows the prepared sample loaded on the confocal microscopy.
1. Preparations
2. Organ harvest and tissue preparation
3. Whole-mount immunofluorescence staining
4. Confocal microscopy
By using the protocol outlined above, confocal microscopy imaging of both SAN and AVN can be reliably performed. Specific staining of the conduction system using fluorescent antibodies targeting HCN4 and staining of the working myocardium using fluorescent antibodies targeting Cx43 allows the clear identification of SAN (Figure 5, Video 1) and AVN (Figure 6, Video 2) within the intact anatomy.

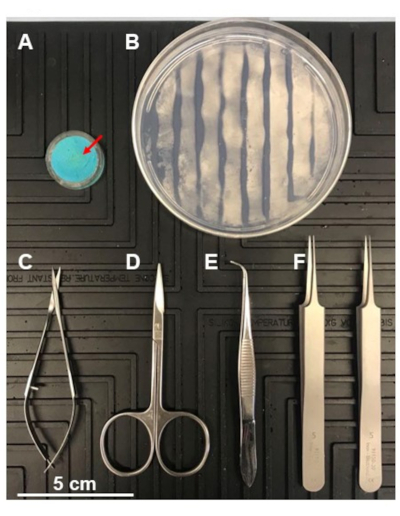

Figure 1: Instruments for dissection and Plexiglas ring holder. A. Plexiglas ring filled with plasticine (red arrow shows the groove formed in the center for loading the heart). B. Dissection Petri dish with agarose gel. C. Spring scissors. D. Iris scissors. E. Curved forceps. F. Fine forceps. Please click here to view a larger version of this figure.
Figure 2: Illustration of the gross cardiac anatomy. A. Schematic illustration of the SAN microdissection. Pins are applied through the apex and the left atrial appendage (LAA). SAN is indicated by red dashed circle. B. Schematic illustration of the AVN microdissection. Pins are put through the remaining part of the LV free wall (which is now at the bottom). AVN is indicated by a red dashed circle. SVC, Superior vena cava; IVC, inferior vena cava; CS, coronary sinus; LAA, left atrial appendage; RAA, right atrial appendage; PA, pulmonary artery; PV, pulmonary vein; LV, left ventricle; IVS, interventricular septum; IAS, interatrial septum; OF, oval fossa. Please click here to view a larger version of this figure.
Figure 3: Location of SAN and AVN in an adult mouse heart. A. Location of the sinoatrial node (SAN) in an adult mouse heart. View from the back of the heart. Location of the SAN is indicated by red dashed line within the inter-caval region (black dashed lines). SVC, Superior vena cava; IVC, inferior vena cava; CS, coronary sinus; LAA, left atrial appendage; RAA, right atrial appendage; PV, pulmonary vein; CT, Crista terminalis; LV, left ventricle; RV, right ventricle. B. Location of the atrioventricular node (AVN) in an adult mouse heart. View from the right. The AVN (red dashed circle) is located at the apex of the triangle of Koch (white dashed triangle) near the bottom of the membranous septum. The triangle of Koch is formed by the tendon of Todaro (TT, green dashed line), tricuspid valve (TV, blue dashed line) and the orifice of the coronary sinus (CS, yellow dashed line). SVC, superior vena cava; IVC, inferior vena cava; IVS, interventricular septum; OF, oval fossa. Please click here to view a larger version of this figure.
Figure 4: Prepared sample loaded on the confocal microscopy. A. The prepared sample (red arrow) for confocal microscopy mounted into the Plexiglas ring with plasticine (black arrow). View from the bottom. B. Plexiglas ring with mounted sample loaded up-side-down on the platform of the confocal microscope (inverse microscope). Please click here to view a larger version of this figure.
Figure 5. Reconstruction of confocal microscopy imaging of SAN in a C57BL6/J mouse stained with anti-HCN4 (red) and Cx43 (white) antibodies. A. The dashed area delineates the SAN, which is oriented along the inter-caval region between the superior and inferior vena cava. B. Magnification of the inlayfrom panel A. C. 3D reconstruction of panel B. RAA, right atrial appendage; RA, right atrium; SAN, sinoatrial node. Please click here to view a larger version of this figure.
Figure 6. Reconstruction of confocal microscopy imaging of AVN in a C57BL6/J mouse stained with anti-HCN4 (red) and Cx43 (white) antibodies. A. Dashed area indicates the AVN. B. Magnification of the inlay from panel A. C. 3D reconstruction of panel B. IVS, interventricular septum; IAS, interatrial septum; AVN, atrioventricular node. Please click here to view a larger version of this figure.
Figure 7. Negative control image. A. negative control whole-mount staining for SAN. The dashed circle showed the SAN region confirmed by the anatomy landmarks. B. negative control staining for SAN only with second antibodies. C. DAPI staining for SAN. D. negative control whole-mount staining for AVN. The dashed circle showed the AVN region confirmed by the anatomy landmarks. E. negative control staining for AVN only with second antibodies. F. DAPI staining for AVN. RAA, right atrial appendage; RA, right atrium; SVC, superior vena cava; IVS, interventricular septum; IAS, interatrial septum; Please click here to view a larger version of this figure.
Video 1: 3D Reconstruction of the SAN Please click here to download this video.
Video 2: 3D Reconstruction of the AVN Please click here to download this video.
Compound | Final concentration | g or mL/100 mL required | |
Fixing solution | |||
Formaldehyde (16%) | 4% | 25 mL | |
PBS (1x) | 75 mL | ||
1% Triton solution | |||
Triton X100 | 1% | 1 mL | |
PBS | 99 mL | ||
Blocking solution | |||
Triton X-100 | 1% | 1 mL | |
BSA | 0.50% | 0.5 g | |
Normal goat serum | 20% | 20 mL | |
PBS (1x) | 89 mL | ||
Washing solution | |||
Tween 20 | 0.10% | 0.1 mL | |
BSA | 0.50% | 0.5 g | |
PBS (1x) | 99.9 mL | ||
TAE (50x) | |||
Tris-base | 24.20% | 24.2 g | |
100% acetic acid | 5.71% | 5.71 mL | |
0.5 M EDTA | 0.05 M | 10 mL | |
dH2O | Add up to 100 mL |
Table 1.
Cardiac anatomy has traditionally been studied using thin histological sections11. However, these methods do not preserve the three-dimensional structure of the conduction system and thus, only provides 2D information. The whole-mount immunofluorescence staining protocol described here allows to overcome these limitations and can be routinely used for SAN and AVN imaging.
In comparison to standard methods such as conventional immunohistochemistry that require paraffin-embedding, sectioning and antigen retrieval, the whole-mount methodology is advantageous for addressing the exact 3D localization and morphology of SAN and AVN, and to examine the relationship with the surrounding tissue since the tissue morphology is considerably preserved with only minimum tissue dehydration and physical rupture. Also, the immunoreactivity (i.e., the binding of antibodies to tissue antigens) is also highly maintained.
We established a practical sample procession method for confocal microscopy by using a plastic ring mounted holder filled with plasticine12,13. Plasticine is ideal since it can be individually adjusted to the size of the tissue, it is hard enough to reliably hold the tissue without excessive pressure of the tissue. Most importantly, it is not fluorescent, avoiding auto-fluorescent background and therefore not interfering with the fluorescent signal of the antibodies used.
We used the confocal laser-scanning microscope (LSM-Zeiss) with the Airyscan detector, which can offer a distinct advantage in obtaining images with high quality. Using a widefield imaging microscope can only offer tissue-level information but lacks cellular resolution. In additional, the widefield microscope carries a risk of high background14. By using an Airyscan detector for confocal LSM, improved resolution and signal-to-noise ratio (SNR) can be acquired, compared to the traditional one pinhole-and-detector confocal imaging system15.
The shapes and position of SAN and AVN are presented as 3D reconstruction and additional virtual section planes derived from 3D reconstruction can enhance the interpretation of histological sections, whereas conventional histology allows only a 2D assessment of the anatomy with the inherent risk of non-detection of small but relevant structures. Moreover, 3D reconstruction provides the opportunity to examine anatomical structures of interest transmurally and within the intact microenvironment, for example intrinsic autonomic nervous plex innervating the heart16. Whole mount in situ staining and 3D reconstruction allows investigation of the cellular environment as well as the specific cell types and their orientation. Furthermore, regional and cell-type specific protein expression can be visualized and may further support western blot and proteomics analyses17.
SAN and AVN are specialized structures within the heart with a different expression pattern of ion channels and connexins that can be used for reliable identification10,18. Hyperpolarization-activated cyclic nucleotide-gated cation channels (HCN) establish the diastolic depolarization in pacemaker cells and are therefore specifically expressed within the conduction system with HCN4 being the predominant isoform in the mouse19. Studies have shown that HCN4 is one of the detectable and stably expressed HCN isoforms throughout the SAN and AVN11,20. Connexins directly connect neighboring cells and allow the passage of ions from cell to cell; they are therefore essential for the conduction of the electrical impulse through the heart21. Connexin expression patterns vary between different regions in the heart with Cx43 being the most abundant isoform that has been found in almost all parts of the heart except for the SAN and AVN22. Combining microdissection to allow exposure of specific regions of interest with anti-HCN4 and anti-CX43 antibodies as well as in silico approaches for three-dimensional reconstruction of confocal images allow reliable identification of SAN and AVN and to comprehensive investigation of the SAN/AVN morphology as well as their interaction with the surrounding tissue.
The SAN and AVN might be easy to distinguish after staining with a specific antibody. To localize the SAN and AVN by their anatomical landmarks, however, some practice is needed before the correct microdissection can be performed.
Using the above protocol, a number of other antigens can also be applied. The protocol also works well on both perfusion-fixed and immersion-fixed tissue. However, the incubation time may be adjusted for optimal fixation since certain antibodies show reduced immunoreactivity when the antigen is over-fixed. As the whole-mount staining approach needs 7 days for primary and secondary antibody incubation, it is important to completely submerge the samples in adequate volumes of antibody-containing solutions. The dilution ratio of each antibody should be tested before the experiment. For optimal staining, any irrelevant tissue should be removed. For the protocol, we only preserved little parts of the ventricles for better orientation and remove all the surrounding fat tissue and pulmonary veins, as surrounding (irrelevant) tissue might bind antibodies as well, especially when the target antigens are globally expressed.
Whole-mount in situ staining, confocal imaging and 3D reconstruction is an invaluable and powerful technique for researchers from various fields. However, the method also has some limitations. (i) It requires specialized equipment such as a confocal microscope that is not commonly available at every institution. (ii) As mentioned above, microdissection of specialized anatomic structures such as the SAN or AVN but also confocal imaging and post-imaging processing requires intensive practicing and experienced personnel. (iii) Success of the method highly relies on the quality of the antibodies used and may therefore be very challenging in some cases. Also (iv) 3D reconstruction can be difficult to achieve and may require intensive troubleshooting to optimize the procedure. For example, optimal intervals have to be set during image acquisition since sections spaced too far apart will leave gaps and might not allow an adequate 3D reconstruction of the anatomy. Sections that are too close may cause oversampling and bleaching due the excessive illumination and will take a long time to complete one image. Finally (v) the major limitation of confocal microscopy is the imaging depth which means that if sample thickness is beyond the maximum operating depth of the confocal microscope, the further fluorophore cannot be detected.
The authors have nothing to disclose.
This work was supported by the China Scholarship Council (CSC, to R. Xia), the German Centre for Cardiovascular Research (DZHK; 81X2600255 to S. Clauss, 81Z0600206 to S. Kääb), the Corona Foundation (S199/10079/2019 to S. Clauss), the SFB 914 (project Z01 to H. Ishikawa-Ankerhold and S. Massberg and project A10 to C. Schulz), the ERA-NET on Cardiovascular Diseases (ERA-CVD; 01KL1910 to S. Clauss) and the Heinrich-and-Lotte-Mühlfenzl Stiftung (to S. Clauss). The funders had no role in manuscript preparation.
Anesthesia | |||
Isoflurane vaporizer system | Hugo Sachs Elektronik | 34-0458, 34-1030, 73-4911, 34-0415, 73-4910 | Includes an induction chamber, a gas evacuation unit and charcoal filters |
Modified Bain circuit | Hugo Sachs Elektronik | 73-4860 | Includes an anesthesia mask for mice |
Surgical Platform | Kent Scientific | SURGI-M | |
In vivo instrumentation | |||
Fine forceps | Fine Science Tools | 11295-51 | |
Iris scissors | Fine Science Tools | 14084-08 | |
Spring scissors | Fine Science Tools | 91500-09 | |
Tissue forceps | Fine Science Tools | 11051-10 | |
Tissue pins | Fine Science Tools | 26007-01 | Could use 27G needles as a substitute |
General lab instruments | |||
Orbital shaker | Sunlab | D-8040 | |
Magnetic stirrer | IKA | RH basic | |
Pipette,volume 10 µL, 100 µL, 1000 µL | Eppendorf | Z683884-1EA | |
Microscopes | |||
Dissection stereo- zoom microscope | VWR | 10836-004 | |
Laser Scanning Confocal microscope | Zeiss | LSM 800 | |
Software | |||
Imaris 8.4.2 | Oxford instruments | ||
ZEN 2.3 SP1 black | Zeiss | ||
General Lab Material | |||
0.2 µm syringe filter | Sartorius | 17597 | |
100 mm petri dish | Falcon | 351029 | |
27G needle | BD Microlance 3 | 300635 | |
50 ml Polypropylene conical Tube | Falcon | 352070 | |
5ml Syringe | Braun | 4606108V | |
Cover slips | Thermo Scientific | 7632160 | |
Eppendorf Tubes | Eppendorf | 30121872 | |
Chemicals | |||
0.5 M EDTA | Sigma | 20-158 | Components of TEA |
16% Formaldehyde Solution | Thermo Scientific | 28908 | use as a 4% solution |
Acetic acid | Merck | 100063 | Components of TEA |
Agarose | Biozym | 850070 | |
Bovine Serum Albumin | Sigma | A2153-100G | |
DPBS (1X) Dulbecco's Phosphate Buffered Saline | Gibco | 14190-094 | |
Normal goat serum | Sigma | NS02L | |
Sucrose | Sigma | S1888-1kg | |
Tris-base | Roche | TRIS-RO | Components of TEA |
Triton X-100 | Sigma | T8787-250ml | Diluted to 1% in PBS |
Tween 20 | Sigma | P2287-500ml | |
Drugs | |||
Fentanyl 0.5 mg/10 mL | Braun Melsungen | ||
Isoflurane 1 mL/mL | Cp-pharma | 31303 | |
Oxygen 5 L | Linde | 2020175 | Includes a pressure regulator |
Antibodies | |||
Goat anti-Rabbit IgG Alexa Fluor 488 | Cell Signaling Technology | #4412 | diluted to 1:200 |
Goat anti-Rat IgG Alexa Fluor 647 | Invitrogen | #A-21247 | diluted to 1:200 |
Hoechst 33342, Trihydrochloride, Trihydrate (DAPI) | Invitrogen | H3570 | diluted to 1:1000 |
Rabbit Anti-Connexin-43 | Sigma | C6219 | diluted to 1:200 |
Rat anti-HCN4 (SHG 1E5) | Invitrogen | MA3-903 | diluted to 1:200 |
기타 | |||
Plastic ring | Self-designed and 3D printed | ||
Plasticine | Cernit | 49655005 | |
Silikonpasten, Baysilone | VWR | 291-1220 | |
Animals | |||
Mouse, C57BL/6 | The Jackson Laboratory |
