An In Vivo Method for Evaluating the Gut-Blood Barrier and Liver Metabolism of Microbiota Products

Summary

The access of nutrients, microbiota metabolites and medicines to the circulation is controlled by the gut-blood barrier (GBB). We describe a direct method for measuring the GBB permeability in vivo, which, in contrast to commonly used indirect methods, is virtually not affected by liver and kidney functions.

Abstract

The gut-blood barrier (GBB) controls the passage of nutrients, bacterial metabolites and drugs from intestinal lumen to the bloodstream. The GBB integrity is disturbed in gastrointestinal, cardiovascular and metabolic diseases, which may result in easier access of biologically active compounds, such as gut bacterial metabolites, to the bloodstream. Thus, the permeability of the GBB may be a marker of both intestinal and extraintestinal diseases. Furthermore, the increased penetration of bacterial metabolites may affect the functioning of the entire organism.

Commonly used methods for studying the GBB permeability are performed ex vivo. The accuracy of those methods is limited, because the functioning of the GBB depends on intestinal blood flow. On the other hand, commonly used in vivo methods may be biased by liver and kidney performance, as those methods are based on evaluation of urine or/and peripheral blood concentrations of exogenous markers. Here, we present a direct measurement of GBB permeability in rats using an in vivo method based on portal blood sampling, which preserves intestinal blood flow and is virtually not affected by the liver and kidney function.

Polyurethane catheters are inserted into the portal vein and inferior vena cava just above the hepatic veins confluence. Blood is sampled at baseline and after administration of a selected marker into a desired part of the gastrointestinal tract. Here, we present several applications of the method including (1) evaluation of the colon permeability to TMA, a gut bacterial metabolite, (2) evaluation of liver clearance of TMA, and (3) evaluation of a gut-portal blood-liver-peripheral blood pathway of gut bacteria-derived short-chain fatty acids. Furthermore, the protocol may also be used for tracking intestinal absorption and liver metabolism of drugs or for measurements of portal blood pressure.

Introduction

The gut-blood barrier (GBB), also known as the intestinal barrier, is a complex multilayer system that separates the gut lumen from the bloodstream in order to limit the passage of harmful compounds while allowing the absorption of nutrients¹. It consists of the three main layers: the mucus layer, epithelium and lamina propria.

Numerous factors may affect the GBB integrity and function². It has been shown that GBB is disturbed in both gastrointestinal and extraintestinal diseases, including cardiovascular and metabolic diseases³, which may lead to an increased passage of gut bacterial metabolites to the bloodstream⁴. An increased penetration of gut bacterial metabolites may affect the functioning of the entire organism. For example, recent studies show a significant impact of bacterial metabolites, such as indoles, H2S, short-chain fatty acids (SCFA), and trimethylamine N-oxide, on the circulatory system functions^5,6,7,8,9. Finally, it has been proposed that an increased GBB permeability may serve as a marker of cardiovascular and metabolic diseases which are associated with morphological and functional alterations in the intestines¹⁰. Therefore, tracking the gut-portal blood-liver-systemic blood pathway of bacterial metabolites may be of interest for both basic and clinical sciences.

Commonly utilized experimental methods for the evaluation of GBB permeability are performed in vitro using resected intestinal segments, fragments of mucosa, or artificial membranes^11,12. The accuracy of those methods is compromised by the fact that proper functioning of the GBB requires constant intestinal blood flow. On the other hand, the available in vivo methods are based on the evaluation of urine or peripheral blood concentrations of exogenous markers¹³. However, peripheral blood and urine concentration of exogenous compounds is influenced by kidney function, i.e., glomerular filtration rate and tubular excretion, as well as by liver metabolism, i.e., first pass metabolism. Both parameters may differ significantly between study subjects independently of the GBB function.

This paper describes a direct measurement of the GBB permeability in rats using portal blood sampling. This in vivo method preserves the intestinal blood flow and is virtually not influenced by liver and kidney function. The described approach is not commonly used, possibly because of some methodological difficulties. We describe in detail the catheterization of the portal vein and inferior vena cava just above the hepatic vein confluence. Blood sampling from the portal vein and inferior vena cava allows evaluation of the GBB permeability and liver clearance as well as tracking of gut-portal blood-liver-systemic blood pathway of molecules of interest, such as gut bacterial metabolites or medicines. We also present several applications of the method that were tested in our laboratory. These include the evaluation of the colon permeability to TMA, a gut bacterial metabolite, evaluation of liver clearance of TMA, and evaluation of a gut-portal blood-liver-systemic blood pathway of SCFA.

To evaluate gut-blood barrier permeability, the following protocol steps should be followed, in order: 1 (insertion of the line for intraintestinal administrations), 3 (portal vein catheterization), 4 (portal vein blood sampling), 6 (administration of a gut permeability marker), 4.

To evaluate liver clearance and a gut-portal blood-liver-systemic blood pathway, the following protocol steps should be followed, in order: 1 (insertion of the line for intraintestinal administrations), 2 (inferior vena cava catheterization), 3 (portal vein catheterization), 4 (portal vein blood sampling), 5 (inferior vena cava blood sampling), 6 (administration of a gut permeability marker), 4, 5, 7 (calculation of liver clearance).

Protocol

The experiments were performed on male Wistar Kyoto rats according to Directive 2010/63 EU on the protection of animals used for scientific purposes and were approved by the I Local Bioethical Committee in Warsaw.

1. Insertion of the Line for Intraintestinal Administration

NOTE: Here we propose intracolonic administration of a marker using a catheter. It may be modified by oral administration or gavage at various levels of the digestive tract e.g. stomach or duodenum. Remember to use disposable surgical clothing, including surgical gown, hood and gloves, and ensure to follow the safety precautions related to the sharp tools used in surgery (needles, etc.) during procedures 1-6.

1. Fast animals overnight before the procedure. Perform all procedures during general anesthesia, i.e., obtained by injection of urethane 1.5 g/kg bw i.p. Assess proper anesthetization by the lack of palpebral and corneal reflexes, and by toe-pinch and tail-pinch method.
2. Use a pediatric Foley catheter (10F or 8F) as a colonic catheter. Mark the catheter to indicate the part that will be inserted into the colon (approximately 8 cm).
3. Check the anal region and the stool content in the rectum before inserting the catheter into the colon. If stool is present, empty the rectum by massaging the rectal area.
4. Put a lubricant (e.g. glycerin or petrolatum) along the catheter. Moisten the anus and its surroundings with the lubricant.
5. Insert the catheter with a guide wire approximately 8 cm through the external anal sphincter. Make slow forward-backward and circular movements.
   NOTE: Keep on checking the location of the catheter by abdominal palpation while inserting the catheter.

2. Inferior Vena Cava Catheterization

1. Shave fur in the groin. Alternately disinfect the skin with alcohol and povidone iodine 3 times and cover the groin area with surgical drapes.
2. Try to feel the pulse on the femoral artery and cut the skin longitudinally for the length of about 2.0 cm in the place where the pulse is palpable.
3. Dissect the fascia and muscles to visualize the neurovascular bundle.
4. Dissect the femoral vein from the neurovascular bundle: first nerves, then the femoral artery, and then the vein.
   NOTE: Be careful during the dissection of the neurovascular bundle, since tiny branches of the femoral vein may easily be damaged, producing bleeding.
5. Put two ligatures on the femoral vein. Do not tie the knots yet. Catch the ends of the proximal ligature with a needle holder.
6. Carefully pull the ligature ends with the holder upwards to close the proximal part of the vein. Wait until the vein is filled with blood and tie the distal knot.
7. Make a small incision (ca. 1 mm) on the vein between the knot and proximal ligature, using microsurgical scissors. Insert the catheter using tweezers or the needle with the curved end.
   NOTE: Puncture the vein and use the bended tip of the needle as a guide for the catheter. Loosen the proximal ligature while inserting the catheter. Insert the catheter for 6-7.0 cm.
8. Secure the catheter in the femoral vein with two single surgical knots. Tie the proximal ligature as well.
9. Check the patency of the catheter by attempting to draw blood with a syringe. Rinse the catheter with 0.3 mL of the heparinized saline (100 units/mL).
10. Close the surgical wound with two layers of single stitches.

3. Portal Vein Catheterization

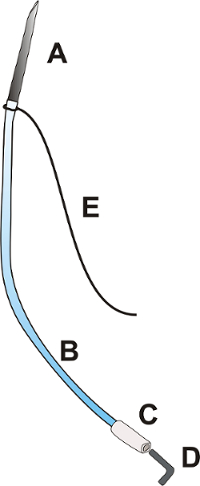

Figure 1: Portal catheter. The portal catheter consists of a needle OD: 0.9 mm with a length of about 25.0 mm [A], a flexible polyurethane catheter OD: 0.025", length about 100.0 mm [B], a flexible polyethylene tip of the catheter OD: 0.040", approximately 15.0 mm long [C], a plug [D], and a ligature 3/0 with a length of 100.0 mm [E]. Please click here to view a larger version of this figure.

1. Prepare the portal catheter according to Figure 1.
   1. Insert the cut end of the needle (OD: 9 mm) into the polyurethane catheter OD: 0.025".
   2. Tie the ligature 3/0 at the junction of the needle and catheter.
      NOTE: Ensure that the longer part of the ligature is at least 6 cm long.
   3. Insert the end of the catheter OD: 0.025" into the polyethylene catheter OD: 0.040".
   4. Close the catheter with a metal or plastic plug.
2. Midline laparotomy
   1. Shave fur in the abdomen, alternately disinfect the skin with alcohol and povidone iodine 3 times, and cover the area with surgical drapes.
   2. Cut the skin longitudinally from the xiphoid of the sternum to the navel.
   3. Cut the muscles of the abdominal wall along the white line.
   4. Expand the cut rostrally in the Y shape so that the xiphoid cartilage is between two cuts.
3. Portal vein dissection
   1. Moisten the surgical swabs with saline.
   2. Exteriorize the cecum, ascending and transverse colon, and small intestine loop. Put the intestines on the left side to expose the root of the mesentery.
      NOTE: Cover the intestines with gauze moistened with a physiological saline to protect the intestines from drying.
   3. To expose the portal vein, carefully move the hepatic lobes to the sides or upwards towards the diaphragm with the moistened swabs.
   4. Localize the part of the portal vein that is not covered with the mesentery (in the hepatic hilum, about 5 mm long) and pass the ligature 3/0 (15 cm long) under the portal vein.
      NOTE: To protect tissues from damage while placing the ligature, moisten the ligature with a physiological saline solution.
   5. Clamp the ends of ligature with forceps and tighten it gently to stabilize the vessel.
4. Insertion and stabilization of the catheter
   1. Pass the longer part of the portal catheter's ligature under the free part of the portal vein and pull it so that the catheter is located just next to the portal vein.
   2. Insert the needle into the upper mesenteric vein 3 mm below the junction of upper mesenteric vein and the portal vein. Hold the needle at a 30° angle and, after entering into the vein, reduce the angle and advance the needle almost horizontally, in parallel to the portal vein.
      NOTE: Insert the needle for a length of approximately 6-7 mm. The stabilizing ligature should gently tighten the portal vein while inserting the catheter.
   3. Apply 1-2 drops of tissue glue at the place where the needle is inserted. Remove the swabs that cover the liver.
   4. Put the intestines back into the abdominal cavity.
   5. Moisten the intestines with a warmed up saline solution and cover it with moistened sterile gauze.
   6. Check the patency of the catheter and rinse the catheter with 0.3 mL of the heparinized saline (100 units/mL).
      NOTE: Venous blood spontaneously backflows in the catheter.
5. Ending of the surgery
   1. After 5 minutes, check the color of the intestines and peristaltic movements, make sure that the proper mesenteric blood flow is maintained.
   2. Close the abdominal cavity with 3 stitches: wall peritoneum with the inner layer of the abdominal wall muscles - a continuous, absorbable suture; remaining muscles of the abdominal wall - a continuous, absorbable suture; skin and subcutaneous tissue - single, non-absorbable sutures.
      NOTE: Exteriorize the distal part of the catheter around the navel.

4. Portal Vein Blood Sampling

1. Sample portal vein blood at times according to the specific testing protocol used; see Table 1.

Short protocol	Long protocol
t0 – baseline (before intracolonic administration)	t0 – baseline (before intracolonic administration)
t1 – 5 min after intracolonic administration	t1 – 30 min after intracolonic administration
t2 – 30 min after intracolonic administration	t2 – 60 min after intracolonic administration

Table 1: Portal blood sampling protocols for gut permeability assessment.

NOTE: The time between consecutive blood sampling depends mainly on the bioavailability of the tested substances and the site of administration (colon, stomach, etc.).

2. Open the portal catheter plug and let the blood flow freely.
3. Use syringe (vol. 2 mL) and blunt needle OD: 0.9 mm. Collect no more than 0.7 mL of blood.
4. Rinse the catheter with 0.3 mL of heparinized saline (100 units/mL) and close the catheter plug.

5. Inferior Vena Cava Blood Sampling

1. Sample inferior vena cava blood at times according to the specific testing protocol used; see Table 2.

Portal vein	Inferior vena cava
t0 – baseline (before intracolonic administration)	t0 – baseline (before intracolonic administration)
t1 – 30 min after intracolonic administration	t1 – 30 min after intracolonic administration

Table 2: Protocol of blood sampling for liver clearance measurement and tracking the gut-portal blood-liver-systemic blood pathway.

2. Open the inferior vena cava catheter plug and let the blood flow freely.
3. Collect no more than 0.7 mL of blood using syringe (vol. 2 mL) and broken needle OD: 0.9mm.
4. Rinse the catheter with 0.2-0.3 mL of heparinized saline (100 units/mL) and close the catheter plug.

6. Administration of a Gut Permeability Marker

1. Remove the guide wire and inflate the colonic catheter balloon, using adequate volume of sterile water (usually 1 mL but check actual balloon size before insertion).
   NOTE: The balloon diameter should not exceed 1 cm.
2. Place the rat head down (inclination about 15%) to minimize the risk of the outflow of the administered solution from the colon.
3. Slowly administer the tested substance (e.g. trimethylamine, 100 mg/kg bw) using a drainage port in colonic catheter.
   NOTE: Do not exceed the volume of 0.75 mL of the administered solution and the feeding speed of 0.5 mL/min to prevent the outflow of the administered solution from the anus.
4. After 10 min deflate the catheter balloon.
5. Sample blood from the inferior vena cava and the portal vein according to the specific testing protocol used; see Table 1 and Table 2.
6. Euthanize animal via approved method.

7. Calculation of Liver Clearance

1. Express liver clearance, understood as hepatic extraction, by the difference between portal blood concentration and inferior vena cava blood concentration or by the ratio of inferior vena cava to portal blood concentration, (1 - (inferior vena cava concentration/portal vein concentration)).

8. Evaluation of the Test Substance Concentration n Blood Samples

1. Depending on the test substance and test methodology, subject the sample to appropriate laboratory procedures (centrifugation, etc.). In the proposed protocols, we evaluate TMA/TMAO and SCFA concentration using liquid chromatography coupled with triple-quadrupole mass spectrometry. Please find a detailed description of the method in Supplemental Material.

Results

We have successfully measured the GBB permeability and liver clearance of TMA in rats. We have demonstrated that hypertensive rats have an increased colon permeability to TMA in comparison to normotensive rats (Figure 2)⁴. In another study we found that high salt intake does not affect the GBB permeability and liver clearance of TMA (Figure 3)¹⁴.

Discussion

The described direct, in vivo, method of measuring the GBB permeability maintains closetophysiological conditions in the gastrointestinal system (preserves the intestinal blood flow), and is virtually not influenced by liver and kidney function.

The critical step of this technique is the insertion of the portal catheter. This must be done gently and decisively at the same time. A mild, short bleeding may occur from the correctly performed puncture of the portal vein; however, it stops...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Needle OD: 9 mm	Becton Dickinson  S.A.	301300
Polyethylene catheter ID: 0.025", OD: 0.040"	Scientific Commodities, Inc.	#BB520-40
Polyethylene catheter ID: 0.012", OD: 0.025"	Scientific Commodities, Inc.	#BB520-25
C-Flex Tubing,Opaque White 1/50"ID x 1/12 " OD	Cole-Parmer Instrument Co.	06424-59
Pediatric Foley catheter (size 10F or 8F)	Sigmed	0000 80305
Surgical ligatures 3/0	Yavo Sp. Z o.o.	P48JE
Absorbable surgical sutures - Polyglactine 910 4/0	KRUUSE Polska Sp. Zo.o.	152336
Tissue glue - Loctite 454Cyanoacrylate Adhesive	Loctite	1370127
Povidone iodine	EGIS Pharmaceuticals PLC	4449 11
Heparin - Heparinium WZF	WZF Polfa S.A.	02BK0417	Dilute 10 times with physiological saline
Glycerin 86%	Laboratorium Farmaceutyczne Avena	5.90999E+12	Serves as a lubricant in colon catheterization
Xylocaine 2%	AstraZenca	9941342
Urethane	Sigma-Aldrich (Merck)	U2500-500G
Trimethylamine solution 45%	Sigma-Aldrich (Merck)	92262-1L
Syringes 2 mL	B.Braun Melsungen AG	4606027V
Saline 250 mL	Fraesenius Kabi Polska Sp. Z o.o.	15LL707WL
Surgical scissors, straight, length 115 mm, 4 1/2 "blunt ends	Braun	NS-010-115-PKM
Artery forceps type Micro-Adson bent, length 140 mm 5 1/2 "	Braun	KN-008-140-ZMK
Anatomic forceps, lenght 95 mm, 3 3/4" sharp 0.7x0.55	Braun	PO-001-007-ZMK
Micro Scissors type Vannas,  straight, lenght 85 mm, 3 3/8 " the length of the blades 6 mm	Braun	NO-010-085-PMK
Towel clamps type Backhouse, lenght 130 mm, 5 1/8"	Braun	HO-128-130-PMK
Needle holders, lenght 150 mm, 6" t=0.4 1/2	Braun	IM-927-150-PZMK
Delicate Scissors, lenght 110 mm , straight, 4 3/8” sharp	Braun	NO-052-110-PMK
Anatomic forceps, lenght 95 mm, 3 3/4" sharp	Braun	PO-022-001-PMK
